Tipper Trailer/Dump Trailer
For Bulk Cargo Transport

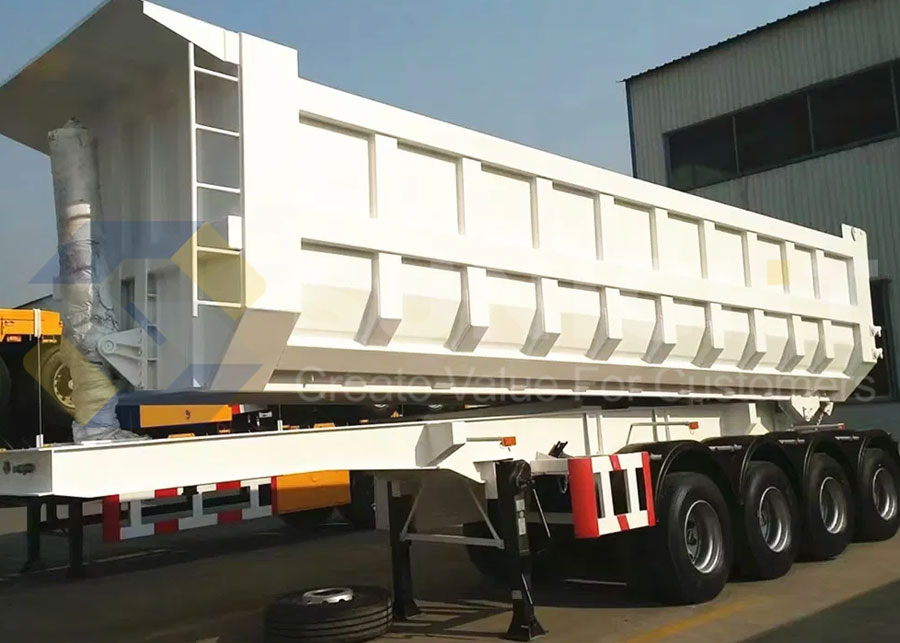

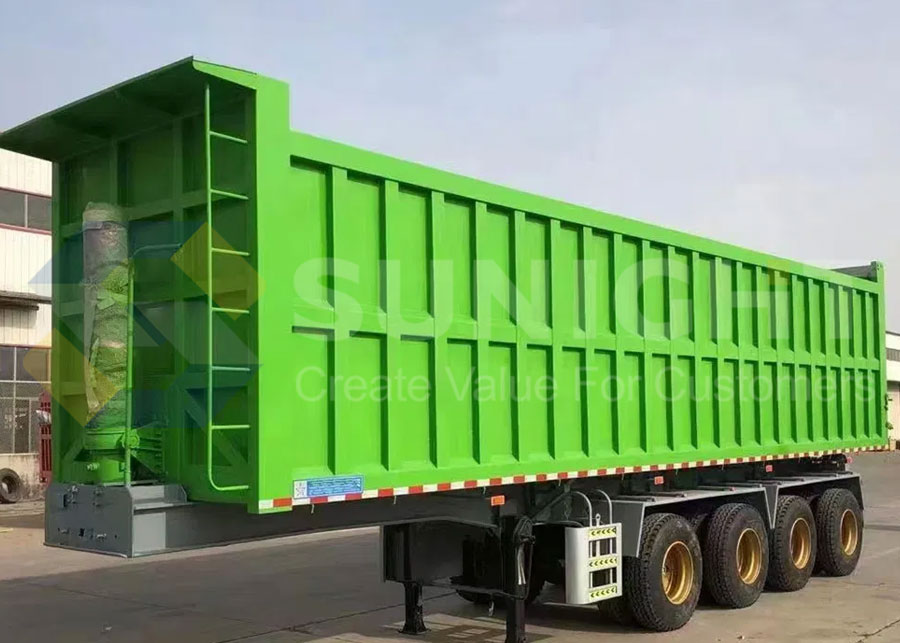

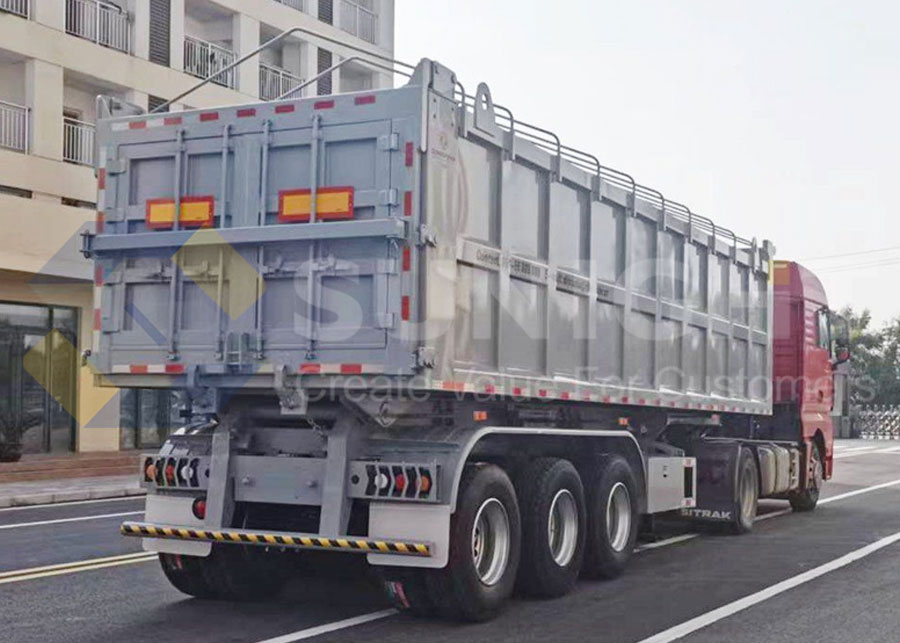

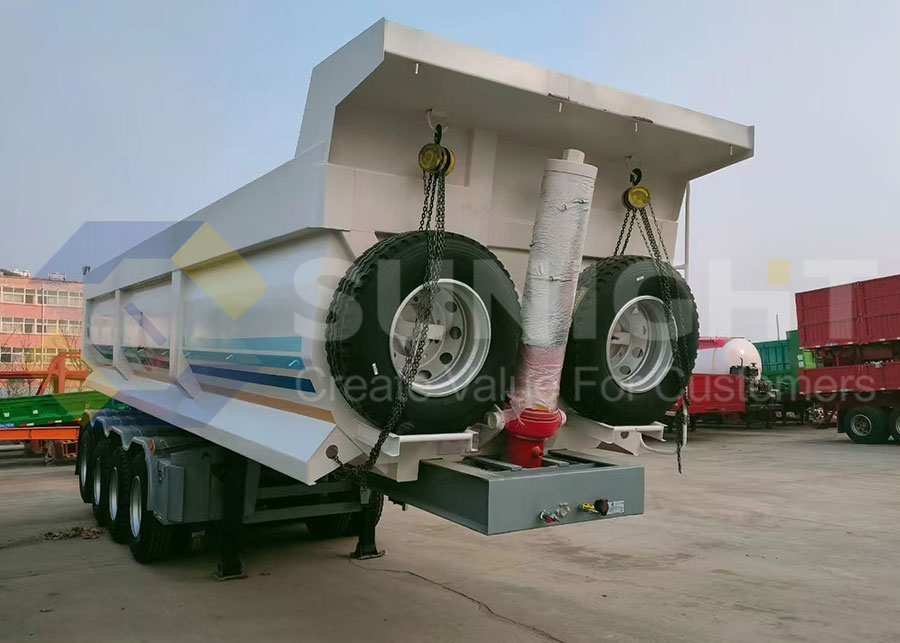

The rear dump semi trailer adopts rear-dump self-unloading methods, which improves the efficiency of the bulk cargo transport by the loader. The dump trailer is inclined at a certain angle so that the cargo in the carriage is unloaded. The rear tipping semi trailer uses 4 turn over brackets, which makes the cargo box body more strong.
Dump semi trailer adopt advanced design concept.For the tipper trailer box, we adopt high strength steel to make it durable when load the sand or small stones or rocks, especially under the off road condition.
● Load Capacity: 30Ton - 80Ton
● Axle Number: 3, 4, 5, 6 Axles
● Transport: Bulk cargo
| Payload | 30-80T |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 18mm,width140mm;Middle Flange 14mm height 500mm;bottom flange20mm,width 140mm |
| Floor | 8mm checkered plate (Optional) |
| Side wall | Height 1600mm thickness 6mm (Optional) |
| Cylinder | HYVA (Optional) |
| Axle | 3 axle FUWA brand 13T (Optional) |
| Suspension | Mechanical suspension American type (Optional) |
| Leaf spring | Leaf spring 10pcs*90*13mm (Optional) |
| Tire | 12R22.5 12pcs (Brand and specs optional) |
| Wheel rim | 9.0-22.5 12pcs (Brand and specs optional) |
| Kingpin | 2"/3.5" bolt-in /welded king pin |
| Landing gear | Two-speed, manual operating ,heavy duty landing gear 28T |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Optional Customer can choose china brand or WABCO brand or without ABS |
| Light | LED 8 side lights and 2 rear lights 2 width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
Packaging & Shipping
| Transport 1: Loading in the container by cutting the tail. One 40HQ can load two sets 40ft skeleton type semi trailer. |  |
 |
Transport 2: 2 or 3 units skeleton type semi trailer in one set to save cost. Nude with wax spray |
| Transport 3: Frame container, Sometimes customers also choose to use frame boxes to transport semi trailers. |  |
Tipper dump trailer are mainly used to transport earthwork, ores, construction materials and other bulk cargo. The hydraulic dumping system can realize self-unloading, which saves time and effort. This special design is for heavy vehicles, it ensures safety when unloading.
SUNIGHT Dump Trailer is the main product of our company. It use high strength full thickness Steel, titanium content of 0.98‰, which ensure Beam and frame's Toughness and strength. The strong Loading Capacity, 30-100 Tons Loading Range.
The frame chassis of this series adopts the through-beam structure, and the frame structure includes straight and gooseneck types. The overall strength is high, the weight is light, the appearance is beautiful, and the use is safe and reliable.
